YH10W5-36 36kV 10ka ZnO Substation Lightning Arrester

MOQ:	1
قیمت:	0.1

Detail Information

Product Description

Detail Information

گواهی:

ISO9001

شماره شماره:

YH10W5-36

نصب:

گیر موازی

مادی:

Zno

مرحله:

مجرد

جریان تخلیه:

10 کیلو آمپر

ولتاژ:

36 کیلو ولت

ولتاژ دارای امتیاز:

36 کیلو ولت

قطر ریخته:

138/108

قد:

362 میلی متر

وزن ناخالص:

4.5 کیلوگرم

فاصله خزش:

1148

جریان طولانی مدت:

400A

ضربه رعد و برق:

170/200kV

MCOV:

29 کیلو ولت

کنونی:

10 کیلو ولت

برجسته کردن:

36kV substation lightning arrester,10ka ZnO lightning arrester,high voltage surge arrester

10ka ZnO lightning arrester

high voltage surge arrester

Product Description

Included Disconnector Bracket Composite Arrestor 10ka, 36kv for Substation

Product Specifications

Attribute	Value
Model NO.	YH10W5-36
Installation	Parallel Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Shape	Spiral
Material	ZnO
Brand	Yongde
Phase	Single
Housing Color	Grey
Discharge Current	10ka
Voltage	36kv
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONGDE
Origin	China
HS Code	85354000
Production Capacity	5000 PCS/Month

Technical Parameters

Rated voltage: 36KV

Shed diameter: 138/108

Height: 362mm

Gross weight: 4.5kg

Creepage distance: 1148

Long duration current impulse: 400A

Lightning impulse withstand: 170/200KV

Type	YH10W5-36/98
Rated voltage (kV)	36
MCOV (kV)	29
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	106
8/20µS Residual voltage of lightning impulse current at 5kA (kV)	98
Residual voltage of switching impulse current at 1kA (kV)	75
1mA D.C reference voltage (kV)	51
Line discharge level	1
2mS long duration impulse current (A)	400
4/10µS High current impulse (kA)	100
Lightning impulse withstand (kV)	200
Power frequency voltage withstand (dry/wet) (kV)	70
0.1S TOV (kV)	43.2
1S TOV (kV)	41.4
10S TOV (kV)	39.6
1200S TOV (kV)	36
Creepage distance (mm)	1148
Material employed in series non-linear resistor	Zinc Oxide

Our Services

Inquiry response within 24 hours for products or pricing
Professional support from experienced, English-speaking staff
OEM & ODM services available for custom designs
Distributorship options for unique designs and current models
Complete protection of your sales areas, designs, and private information

Purchase Information

100% authentic products with guaranteed quality
Shipping discounts available when providing complete address details
Mixed shipments available for different specifications to lower freight costs
Wholesale only - contact us for samples or inquiries

Quality Assurance

We provide top-quality products to establish long-term partnerships with our customers. Our competitive pricing strategy helps attract buyers to our store. All orders are shipped promptly after confirmation.

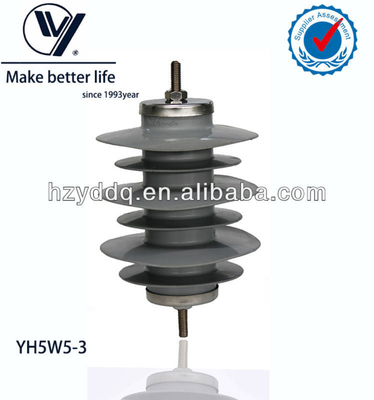

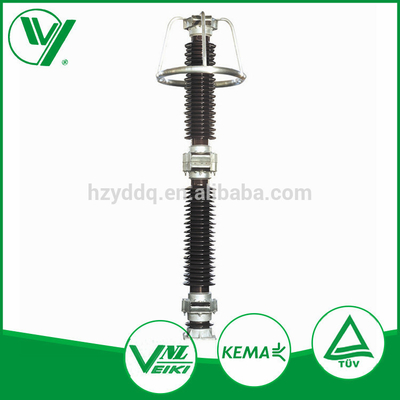

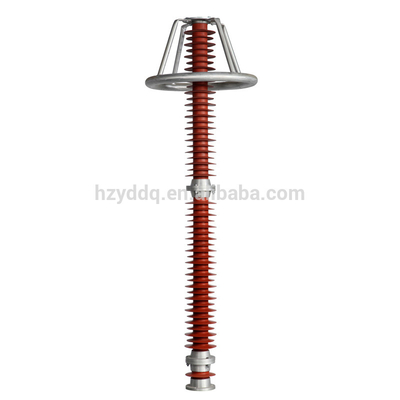

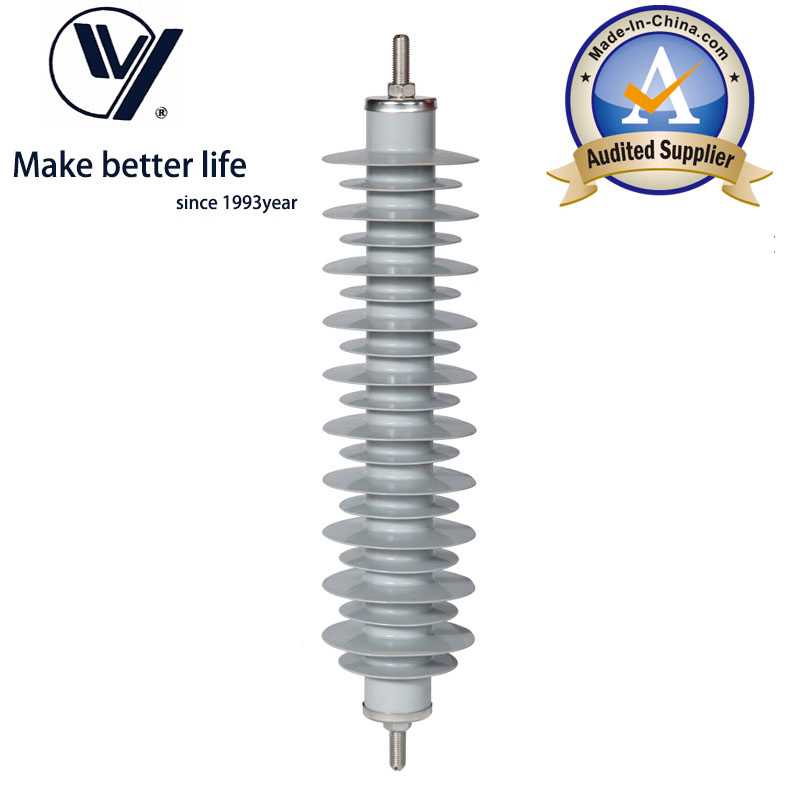

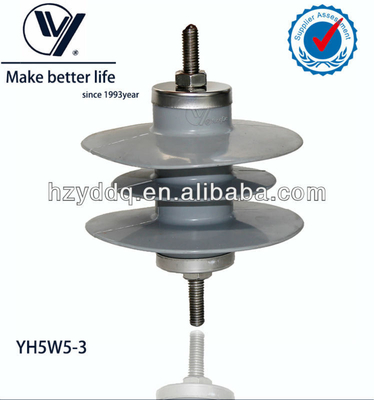

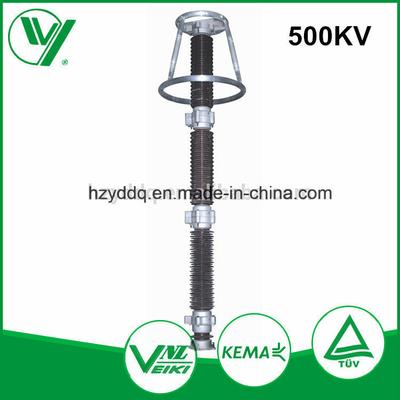

Product Images
